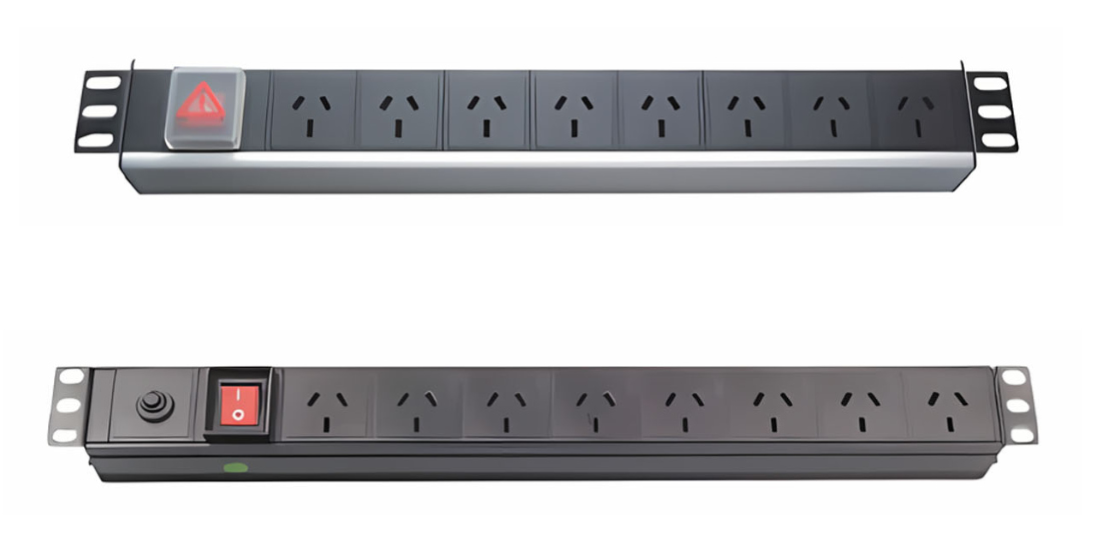

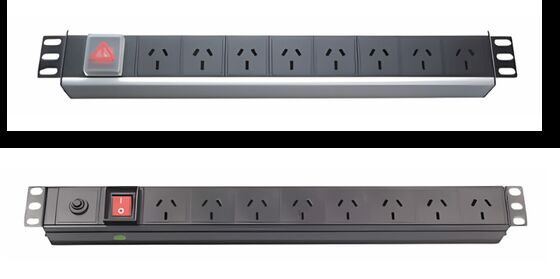

ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers

ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers
ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers
Podstawowe informacje
Miejsce pochodzenia: Chiny
Nazwa handlowa: Zion communication OR OEM
Orzecznictwo: ISO, CE, RoHS, UL
Numer modelu: Skarba na półce sieciowej
Minimalne zamówienie: 1000 szt
Szczegóły pakowania: 1 szt./plastikowa torba, szt./karton
Czas dostawy: Zwykle 10 dni roboczych
Zasady płatności: T/T, akredytywa
Możliwość Supply: 30 000 szt. / Miesiąc
Najlepsza cena Skontaktuj się teraz
Szczegóły informacji
Model: Moduły i akcesoria PDU Bnad: Komunikacja Syjonu
Kolor: Czarny, szary ładowność: 60 kg
Podkreślić:

1U Form Factor Rack PDU

,

Aluminium Housing Power Distribution Unit

,

60kg Loading Capacity PDU

opis produktu

Standard Rack PDU Solutions

ZION standard rack PDUs are designed for cabinet-based power distribution in data centers, telecom rooms, industrial enclosures, and project-based rack systems. Multiple structure sizes, material options, and enclosure colors are available for flexible customization.

1U / 1.4U / 2U / 2.5U / 3UAluminium HousingBlack / White CaseRack Power Distribution

■ Overview

ZION Standard Rack PDU Solutions are built for reliable power distribution inside rack cabinets and equipment enclosures. The product range supports multiple body structures including 1U, 1.4U, 2U, 2.5U, 3U, and square 1U formats, with aluminium alloy and mixed-material housing options. Black and white case colors are available to suit different project requirements.

These standard rack PDU platforms can be combined with different outlet standards, input configurations, and functional modules to create project-specific solutions for telecom, IT, industrial, and integrated cabinet applications.

■ Product Range

The following standard rack PDU structures are listed in the ZION catalog as core platform options for customized rack power distribution.

ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers 0
Standard 1U Rack PDU
Classic slim rack-mount format for standard cabinet power distribution applications.
Product Size:
L × W × D = X × 44.4 × 44.4 mm
ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers 1
1.4U Rack PDU
Expanded body profile for projects requiring additional internal layout space.
Product Size:
L × W × D = X × 62 × 44.4 mm
ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers 2
Slim 1U Rack PDU
Compact 1U structure with alternate depth for specific outlet and cabinet designs.
Product Size:
L × W × D = X × 44.4 × 60 mm
ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers 3
Mixed-Material 1U Rack PDU
1U rack PDU platform suitable for mixed-material structure configurations.
Product Size:
L × W × D = X × 44.4 × 44.4 mm
ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers 4
2U Rack PDU
Higher-capacity body structure suitable for more complex outlet combinations.
Product Size:
L × W × H = X × 44.4 × 88.8 mm
ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers 5
Wide-Body 1U Rack PDU
Extended-width 1U format for projects needing wider module arrangement.
Product Size:
L × W × H = X × 127 × 44.4 mm
ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers 6
2.5U Rack PDU
Special structure for industrial cabinets and customized power distribution layouts.
Product Size:
L × W × H = X × 66.6 × 111 mm
ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers 7
3U Rack PDU
Large-format rack structure for advanced configurations and richer module integration.
Product Size:
L × W × H = X × 44.4 × 124 mm
ZION Standard Rack PDU with 1U Form Factor Aluminium Housing and 60kg Loading Capacity for Data Centers 8
Square 1U Rack PDU
Compact square-body solution for special installation environments and selected socket layouts.
Product Size:
L × W × H = X × 44.4 × 44.4 mm

■ Structure Options

Product Name Form Factor Typical Use Product Size
Standard 1U Rack PDU 1U General rack cabinet power distribution X × 44.4 × 44.4 mm
1.4U Rack PDU 1.4U Expanded profile design X × 62 × 44.4 mm
Slim 1U Rack PDU 1U Alternate 1U depth structure X × 44.4 × 60 mm
Mixed-Material 1U Rack PDU 1U Mixed-material platform option X × 44.4 × 44.4 mm
2U Rack PDU 2U Higher outlet density and larger layout X × 44.4 × 88.8 mm
Wide-Body 1U Rack PDU 1U Wider module arrangement X × 127 × 44.4 mm
2.5U Rack PDU 2.5U Special industrial / customized layouts X × 66.6 × 111 mm
3U Rack PDU 3U Advanced module integration X × 44.4 × 124 mm
Square 1U Rack PDU Square 1U Compact special-shape installation X × 44.4 × 44.4 mm

■ Material & Color Options

Aluminium Alloy Housing
The main standard rack PDU structures are based on aluminium alloy housing for stable installation and reliable rack use.
Mixed-Material Structure
Some standard rack PDU structures also support mixed material combinations such as aluminium, plastic, and PVC for project-specific assembly requirements.
Case Color Options
White case color: Code Y-W
Black case color: Code Y-B
These options support cabinet matching, product line consistency, and OEM customization.

■ Applications

Data Center Cabinets
Stable rack-level power distribution for server, switch, and network equipment deployment.
Telecom Cabinets
Reliable cabinet power integration for telecom racks and communication systems.
Industrial Control Cabinets
Adaptable formats for industrial enclosures and customized project distribution systems.
OEM / Project Orders
Suitable as the base chassis for outlet, input, protection, and monitoring customization.

■ Why Choose ZION Standard Rack PDU Solutions

  • Nine structure options displayed in the catalog for different cabinet layouts
  • Multiple 1U body variants for flexible project matching
  • Aluminium alloy and mixed-material housing options
  • Black and white case colors for different project preferences
  • Compatible with global socket, plug, and input configuration options
  • Suitable for OEM, export, telecom, industrial, and data center applications
